1.8V fixed positive LDO regulator, offering 80mA output current with a low 0.5% accuracy and 150mV dropout voltage. This surface mount component operates with a minimum input voltage of 2.7V and a maximum of 6V, featuring a quiescent current of 500nA. Packaged in a 5-pin SC-70 plastic case, it supports a wide operating temperature range from -40°C to 125°C.
PackageSC
Current Rating80mA
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip TC1016-1.8VLTTR technical specifications.
General
Accuracy
0.5%
Package/Case
SC
Current Rating
80mA
Dropout Voltage
150mV
Height
1mm
Input Bias Current
53uA
Lead Free
Lead Free
Length
2.2mm
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
80mA
Min Output Voltage
1.8V
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Current
80mA
Output Type
Fixed
Output Voltage
1.8V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
500nA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
1.35mm
Compliance
RoHS
Compliant
Datasheet
Microchip TC1016-1.8VLTTR Datasheet
Download the complete datasheet for Microchip TC1016-1.8VLTTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

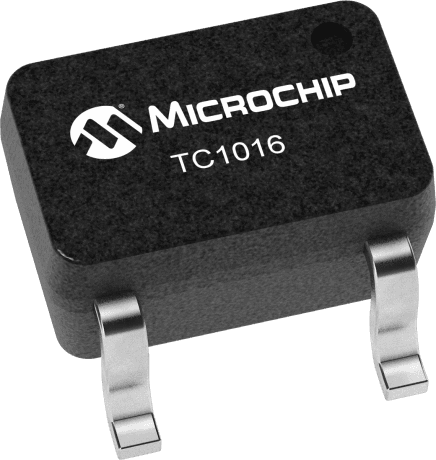

Product Images
