3V fixed positive LDO regulator, offering 80mA output current with a low 0.5% accuracy. Features a minimal 150mV dropout voltage and a wide input voltage range from 2.7V to 6V. This surface mount component, housed in a compact SC-70 (PDSO5) plastic package, operates from -40°C to 125°C. It boasts a low input bias current of 53µA and a quiescent current of 500nA, with lead-free and RoHS compliant construction.
PackageSC
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip TC1016-3.0VLTTR technical specifications.
General
Accuracy
0.5%
Package/Case
SC
Dropout Voltage
150mV
Height
1mm
Input Bias Current
53uA
Lead Free
Lead Free
Length
2.2mm
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
80mA
Min Output Voltage
3V
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Current
80mA
Output Type
Fixed
Output Voltage
3V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
500nA
Radiation Hardening
No
RoHS Compliant
Yes
Width
1.35mm
Compliance
RoHS
Compliant
Datasheet
Microchip TC1016-3.0VLTTR Datasheet
Download the complete datasheet for Microchip TC1016-3.0VLTTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

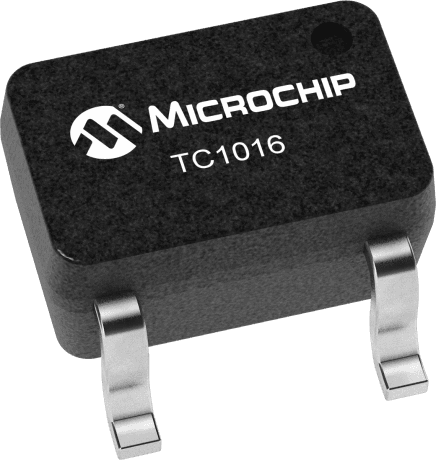

Product Images
