3.3V fixed positive LDO regulator with 80mA output current and 0.5% accuracy. Features a low 150mV dropout voltage and a maximum input voltage of 6V. Operates from -40°C to 125°C in a compact 5-pin SC-70 surface-mount package. Includes 58dB PSRR and 90µA quiescent current.
PackageSC
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip TC1016-3.3VLTTR technical specifications.
General
Accuracy
0.5%
Package/Case
SC
Dropout Voltage
150mV
Height
1mm
Input Bias Current
53uA
Lead Free
Lead Free
Length
2.2mm
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
80mA
Min Output Voltage
3.3V
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
80mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
58dB
Quiescent Current
90uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
1.35mm
Compliance
RoHS
Compliant
Datasheet
Microchip TC1016-3.3VLTTR Datasheet
Download the complete datasheet for Microchip TC1016-3.3VLTTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

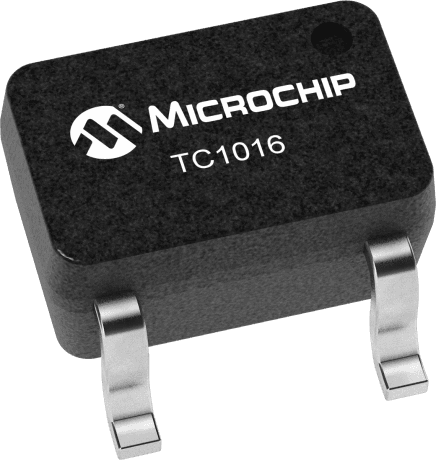

Product Images
