1.8V fixed positive LDO regulator, offering 150mA output current with a 285mV dropout voltage at 150mA. Features 0.5% accuracy, 58dB PSRR, and a quiescent current of 90µA. Operates from 2.7V to 6V input, with a 1.8V fixed output voltage. Packaged in a 5-pin SOT-23 surface mount case, measuring 1.3mm height, 3.1mm length, and 1.8mm width. Suitable for operation between -40°C and 125°C, this lead-free, RoHS compliant component is supplied on tape and reel.
PackageSOT-23-5
MountingSurface Mount
PolarityPositive
Power157mW
Quick Jump:
Technical Specifications
Microchip TC1017-1.8VCTTR technical specifications.
General
Accuracy
0.5%
Package/Case
SOT-23-5
Dropout Voltage
285mV
Height
1.3mm
Input Bias Current
53uA
Lead Free
Lead Free
Length
3.1mm
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Min Output Voltage
1.8V
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
150mA
Output Type
Fixed
Output Voltage
1.8V
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
157mW
Power Supply Rejection Ratio (PSRR)
58dB
Quiescent Current
90uA
Radiation Hardening
No
RoHS Compliant
Yes
Width
1.8mm
Compliance
RoHS
Compliant
Datasheet
Microchip TC1017-1.8VCTTR Datasheet
Download the complete datasheet for Microchip TC1017-1.8VCTTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

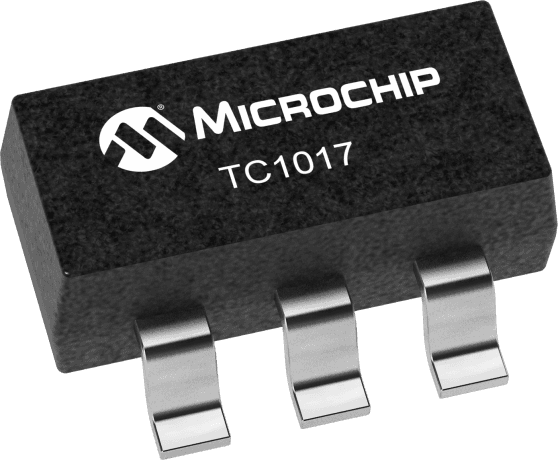

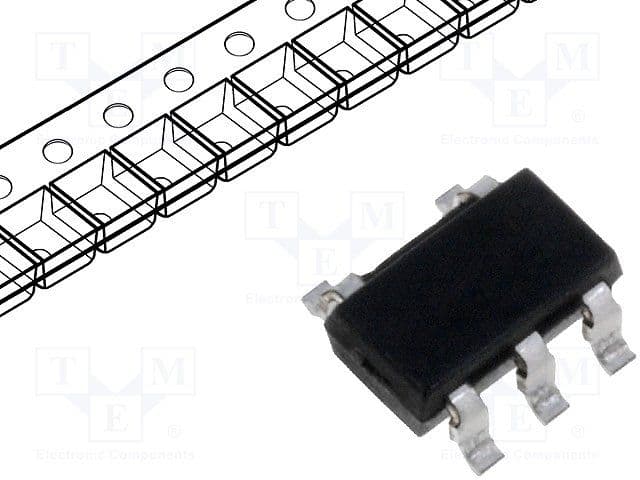

Product Images
