Microchip
TC1017-2.7VLTTR
2.7 V FIXED POSITIVE LDO REGULATOR, 0.5 V DROPOUT, PDSO5, PLASTIC, SC-70, 5 PIN
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip TC1017-2.7VLTTR technical specifications.
General
Accuracy
0.5%
Input Bias Current
53uA
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Min Output Voltage
2.7V
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
150mA
Output Type
Fixed
Output Voltage
2.7V
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
58dB
Quiescent Current
90uA
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip TC1017-2.7VLTTR Datasheet
Download the complete datasheet for Microchip TC1017-2.7VLTTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

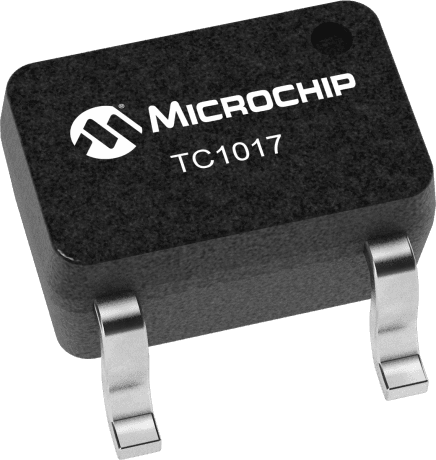

Product Images
