3.3V positive linear voltage regulator (LDO) with 150mA output current. Features a 285mV dropout voltage and 0.5% accuracy. Operates from a 2.7V to 6V input voltage range. Housed in a 5-pin SOT-23 surface-mount package. RoHS compliant with a maximum operating temperature of 125°C.
PackageSOT-23
MountingSurface Mount
PolarityPositive
Power157mW
Quick Jump:
Technical Specifications
Microchip TC1017-3.3VCTTR technical specifications.
General
Accuracy
0.5%
Package/Case
SOT-23
Dropout Voltage
285mV
Height
1.3mm
Input Bias Current
53uA
Lead Free
Lead Free
Length
3.1mm
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Max Output Voltage
3.3V
Min Output Voltage
3.3V
Max Supply Voltage
6V
Min Supply Voltage
2.7V
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Current
150mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
157mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Width
1.8mm
Compliance
RoHS
Compliant
Datasheet
Microchip TC1017-3.3VCTTR Datasheet
Download the complete datasheet for Microchip TC1017-3.3VCTTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

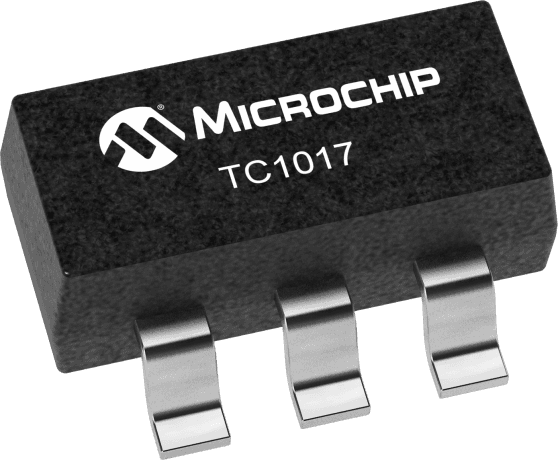

Product Images
