Analog temperature sensor with 2% accuracy, operating from 2.5V to 5.5V supply. Features a 3-pin SOT-23 surface mount package with 2.05mm lead pitch. Delivers an analog voltage output and operates across a -40°C to 125°C temperature range. This RoHS compliant component is supplied in tape and reel packaging.
PackageSOT-23
Current35uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip TC1047AVNBTR technical specifications.
General
Accuracy
2%
Package/Case
SOT-23
Height
0.04inch
Lead Free
Lead Free
Lead Pitch
2.05mm
Length
0.119inch
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100A
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
2.5V
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Operating Supply Current
35uA
Output
ANALOG
Output Current
100uA
Output Type
Analog, Analog Voltage, Voltage
Output Voltage
750mV
Package Quantity
3000
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
2.64mm
Sensor Type
Temperature
Supply Current
35uA
Termination
SMD/SMT
Width
0.055inch
Compliance
RoHS
Compliant
Datasheet
Microchip TC1047AVNBTR Datasheet
Download the complete datasheet for Microchip TC1047AVNBTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

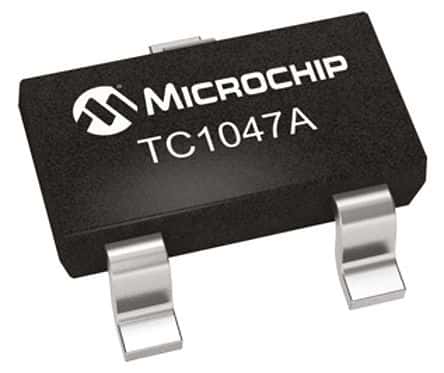

Product Images
