2.5V fixed positive LDO regulator, offering 300mA maximum output current with a low 240mV dropout voltage. Features 0.5% accuracy and a 60dB PSRR. Operates from 2.7V to 6V input, with a temperature range of -40°C to 125°C. Packaged in a SOT-223-3 surface-mount case, this lead-free and RoHS-compliant component is supplied on tape and reel.
PackageSOT-223-3
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip TC1108-2.5VDBTR technical specifications.
General
Accuracy
0.5%
Package/Case
SOT-223-3
Dropout Voltage
240mV
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
300mA
Min Output Voltage
2.5V
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
300mA
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
60dB
Quiescent Current
90uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip TC1108-2.5VDBTR Datasheet
Download the complete datasheet for Microchip TC1108-2.5VDBTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

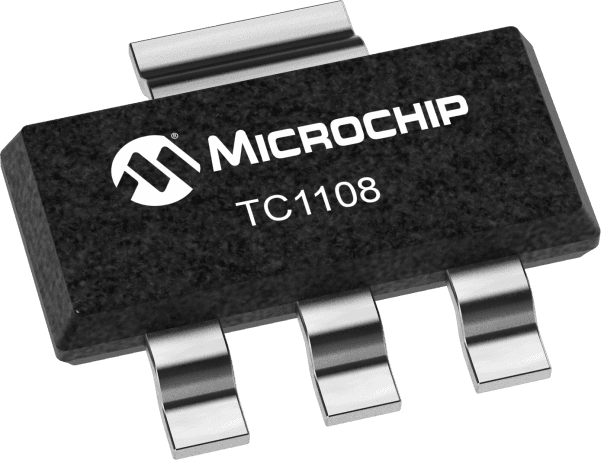

Product Images
