3.3V positive fixed output linear voltage regulator with 300mA output current. Features a low dropout voltage of 240mV at 300mA and 0.5% accuracy. Operates from a 2.7V to 6V input voltage range, with a maximum supply voltage of 6.5V. Housed in a SOT-223-3 package for surface mounting, this RoHS compliant component has a quiescent current of 50uA and an operating temperature range of -40°C to 125°C.
PackageSOT-223-3
Current Rating300mA
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip TC1108-3.3VDBTR technical specifications.
General
Accuracy
0.5%
Package/Case
SOT-223-3
Current Rating
300mA
Dropout Voltage
240mV
Height
1.7mm
Lead Free
Lead Free
Length
6.7mm
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
300mA
Max Output Voltage
3.3V
Min Output Voltage
3.3V
Max Supply Voltage
6.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Current
300mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
50uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Width
3.7mm
Compliance
RoHS
Compliant
Datasheet
Microchip TC1108-3.3VDBTR Datasheet
Download the complete datasheet for Microchip TC1108-3.3VDBTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

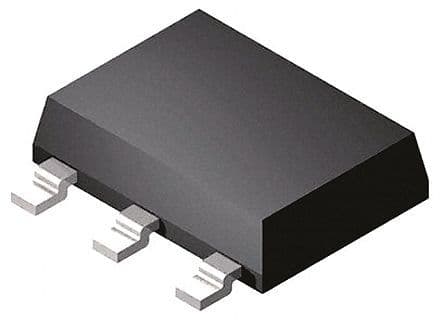

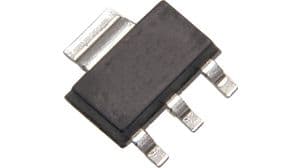

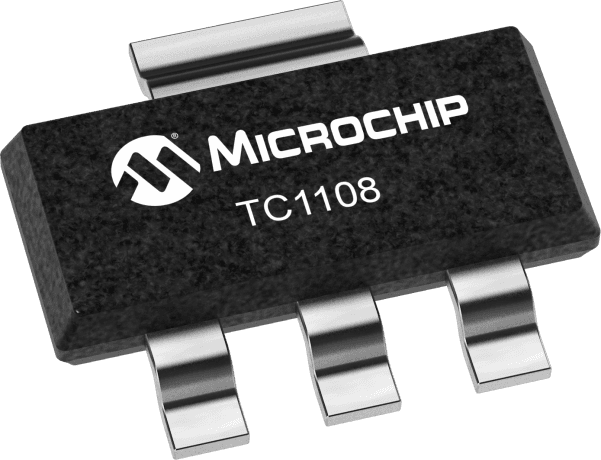

Product Images
