PackageSOT-223-3
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip TC1108-5.0VDBTR technical specifications.
General
Accuracy
0.5%
Package/Case
SOT-223-3
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Min Output Voltage
5V
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
300mA
Output Type
Fixed
Output Voltage
5V
Package Quantity
4000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
60dB
Quiescent Current
90uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip TC1108-5.0VDBTR Datasheet
Download the complete datasheet for Microchip TC1108-5.0VDBTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

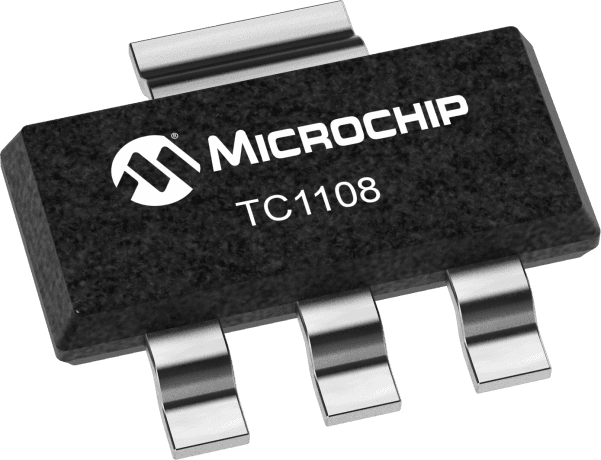

Product Images
