PackageSOIC
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip TC1173-3.3VOA technical specifications.
General
Accuracy
0.5%
Package/Case
SOIC
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Min Output Voltage
3.3V
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
300mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
100
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
60dB
Quiescent Current
90uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip TC1173-3.3VOA Datasheet
Download the complete datasheet for Microchip TC1173-3.3VOA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

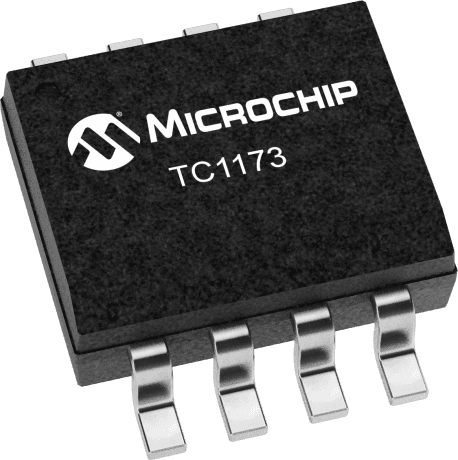

Product Images
