Positive fixed 2.5V LDO voltage regulator with 500mA output current and 350mV dropout voltage. Features 0.5% accuracy, 80uA quiescent current, and a maximum input voltage of 6V. Operates from -40°C to 125°C and is housed in a lead-free SOT-223 surface-mount package.
PackageSOT-223
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip TC1262-2.5VDB technical specifications.
General
Accuracy
0.5%
Package/Case
SOT-223
Dropout Voltage
350mV
Height
1.8mm
Input Bias Current
80uA
Lead Free
Lead Free
Length
7.3mm
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Current
500mA
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
78
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
80uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
7.3mm
Compliance
RoHS
Compliant
Datasheet
Microchip TC1262-2.5VDB Datasheet
Download the complete datasheet for Microchip TC1262-2.5VDB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

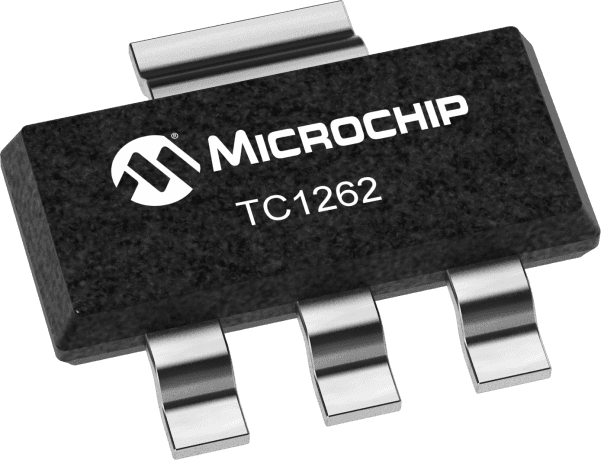

Product Images
