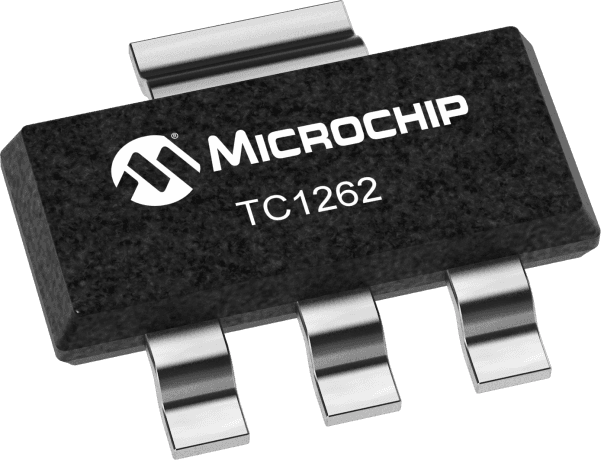

TC1262-2.8VDBTR

2.8V LDO Regulator, 500mA, SOT-223, 0.65V Dropout

2.8V fixed positive LDO regulator, offering 0.5% accuracy and a 0.65V dropout voltage. Features a maximum output current of 500mA, with a 2.8V minimum output voltage. Operates within a 2.7V to 6V input voltage range, and boasts a PSRR of 64dB. Packaged in a SOT-223-3 surface mount configuration, this lead-free and RoHS compliant component is supplied on tape and reel.

PackageSOT-223-3

MountingSurface Mount

PolarityPositive

Quick Jump:

Technical Specifications

Microchip TC1262-2.8VDBTR technical specifications.

General

Accuracy	0.5%
Package/Case	SOT-223-3
Input Bias Current	80uA
Lead Free	Lead Free
Max Input Voltage	6V
Min Input Voltage	2.7V
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Max Output Current	500mA
Min Output Voltage	2.8V
Mount	Surface Mount
Number of Outputs	1
Number of Regulators	1
Output Configuration	Positive
Output Current	500mA
Output Type	Fixed
Output Voltage	2.8V
Package Quantity	4000
Packaging	Tape and Reel
Polarity	Positive
Power Supply Rejection Ratio (PSRR)	64dB
Quiescent Current	130uA
Radiation Hardening	No
RoHS Compliant	Yes
