3V Fixed Positive LDO Regulator, offering 500mA maximum output current with 0.65V dropout voltage. Features 0.5% accuracy, 64dB PSRR, and a wide operating temperature range of -40°C to 125°C. This surface mount device is housed in a SOT-223-3 package, with a maximum input voltage of 6V and a minimum of 2.7V. Lead-free and RoHS compliant, it is supplied on tape and reel.
PackageSOT-223-3
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip TC1262-3.0VDBTR technical specifications.
General
Accuracy
0.5%
Package/Case
SOT-223-3
Input Bias Current
80uA
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Min Output Voltage
3V
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
500mA
Output Type
Fixed
Output Voltage
3V
Package Quantity
4000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
64dB
Quiescent Current
130uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip TC1262-3.0VDBTR Datasheet
Download the complete datasheet for Microchip TC1262-3.0VDBTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

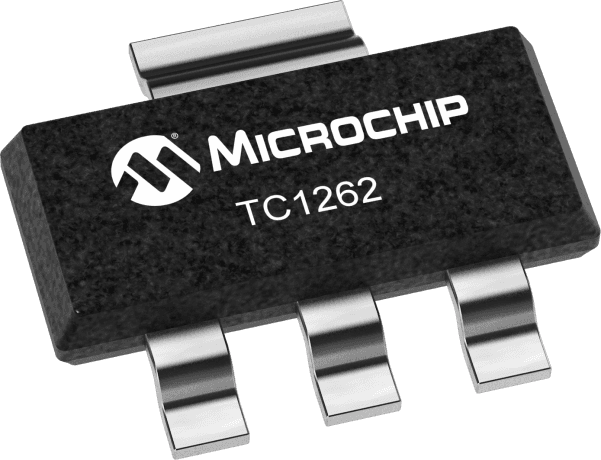

Product Images
