FIXED POSITIVE LDO REGULATOR, 3.3V output voltage with 0.5% accuracy. Features a 350mV dropout voltage and supports up to 500mA output current. Operates with a 2.7V to 6V input voltage range and a maximum operating temperature of 125°C. Packaged in a TO-220-3, through-hole mount configuration.
PackageTO-220-3
MountingThrough Hole
PolarityPositive
Power508mW
Quick Jump:
Technical Specifications
Microchip TC1262-3.3VAB technical specifications.
General
Accuracy
0.5%
Package/Case
TO-220-3
Dropout Voltage
350mV
Height
0.594inch
Input Bias Current
80uA
JESD-30 Code
R-PSFM-T3
Lead Free
Lead Free
Length
0.409inch
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Max Output Voltage
3.3825V
Min Output Voltage
3.3V
Mount
Through Hole
Nominal Output Voltage
3.3V
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Current
500mA
Output Type
Fixed
Output Voltage
3.3V
Package Body Material
Plastic
Package Quantity
50
Package Shape
Rectangular
Packaging
Rail/Tube
Peak Reflow Temperature (Cel)
260°C
Polarity
Positive
Power Dissipation
508mW
Quiescent Current
80uA
Radiation Hardening
No
Reach SVHC Compliant
No
Regulator Type
FIXED POSITIVE LDO REGULATOR
RoHS Compliant
Yes
Surface Mount
No
Technology
CMOS
Terminal Finish
Tin
Terminal Form
Through Hole
Terminal Position
SINGLE
Time @ Peak Reflow Temperature-Max (s)
40s
Width
0.185inch
Compliance
RoHS
Compliant
Datasheet
Microchip TC1262-3.3VAB Datasheet
Download the complete datasheet for Microchip TC1262-3.3VAB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

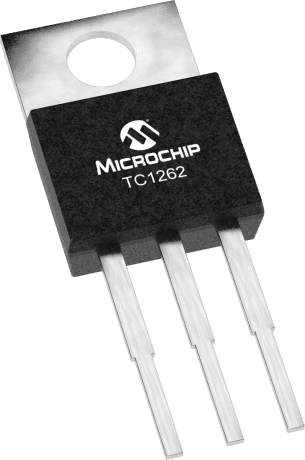

Product Images
