Positive fixed output voltage regulator, 3.3V, with 500mA maximum output current. Features 0.5% output voltage accuracy and a low dropout voltage of 350mV. Operates from a 2.7V to 6V input voltage range and supports a wide temperature range of -40°C to 125°C. Packaged in a 4-pin SOT-223 surface mount case, this RoHS compliant component offers 64dB PSRR and 130uA quiescent current.
PackageSOT-223
Voltage Rating6V
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip TC1262-3.3VDB technical specifications.
General
Accuracy
0.5%
Package/Case
SOT-223
Dropout Voltage
350mV
Height
1.7mm
Lead Free
Lead Free
Length
6.7mm
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
500mA
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
0.5%
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
64dB
Quiescent Current
130uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Voltage Rating
6V
Width
3.7mm
Compliance
RoHS
Compliant
Datasheet
Microchip TC1262-3.3VDB Datasheet
Download the complete datasheet for Microchip TC1262-3.3VDB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

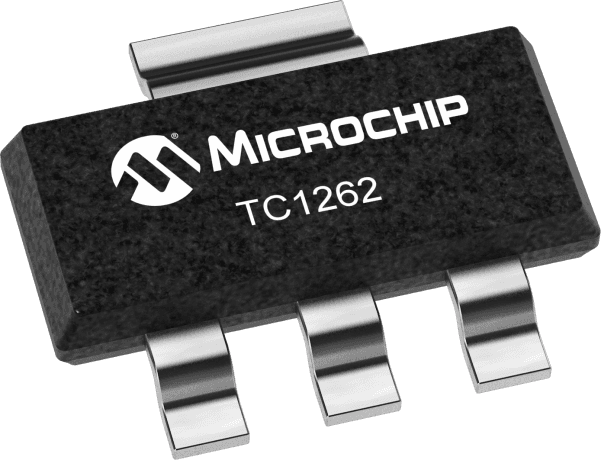

Product Images
