Positive fixed 3.3V LDO regulator with 500mA output current and 0.5% accuracy. Features a low dropout voltage of 350mV, 6V maximum input voltage, and operates from 2.7V to 6V. This surface mount component is housed in a SOT-223-3 package, offering a wide operating temperature range of -40°C to 125°C. It includes 130µA quiescent current and 64dB PSRR, packaged on tape and reel.
PackageSOT-223-3
Current Rating500mA
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip TC1262-3.3VDBTR technical specifications.
General
Accuracy
0.5%
Package/Case
SOT-223-3
Current Rating
500mA
Dropout Voltage
350mV
Height
0.067inch
Input Bias Current
80uA
Lead Free
Lead Free
Length
0.263inch
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Min Output Voltage
3.3V
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
500mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
508mW
Power Supply Rejection Ratio (PSRR)
64dB
Quiescent Current
130uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
0.146inch
Compliance
RoHS
Compliant
Datasheet
Microchip TC1262-3.3VDBTR Datasheet
Download the complete datasheet for Microchip TC1262-3.3VDBTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

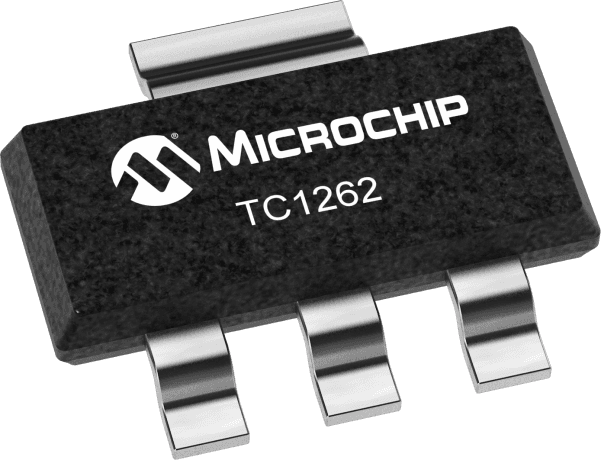

Product Images
