3.3V positive fixed output linear voltage regulator, offering 500mA maximum output current with a 0.65V dropout voltage. Features 0.5% output voltage accuracy and a wide input voltage range from 2.7V to 6V. Operates across a temperature range of -40°C to 125°C, with a typical quiescent current of 130uA and input bias current of 80uA. Packaged in a TO-263-4 (D2PAK-3) surface mount case, this RoHS compliant component is supplied on tape and reel.
PackageTO-263-4
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip TC1262-3.3VEBTR technical specifications.
General
Accuracy
0.5%
Package/Case
TO-263-4
Height
4.65mm
Input Bias Current
80uA
Lead Free
Lead Free
Length
10.41mm
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Min Output Voltage
3.3V
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
500mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
750
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
64dB
Quiescent Current
130uA
Radiation Hardening
No
RoHS Compliant
Yes
Width
9.4mm
Compliance
RoHS
Compliant
Datasheet
Microchip TC1262-3.3VEBTR Datasheet
Download the complete datasheet for Microchip TC1262-3.3VEBTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

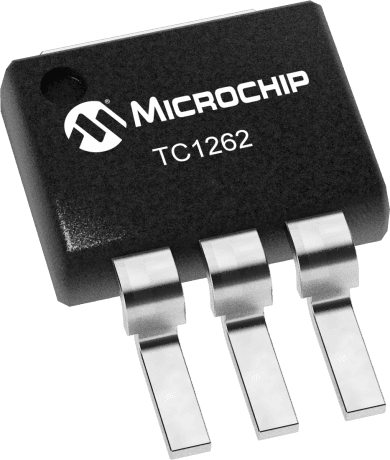

Product Images
