Positive fixed 5V linear voltage regulator with 500mA output current. Features a 350mV dropout voltage and 0.5% accuracy. Operates from a 2.7V to 6V input voltage range. Housed in a 3-pin TO-220 package for through-hole mounting. Offers a wide operating temperature range of -40°C to 125°C.
PackageTO-220-3
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Microchip TC1262-5.0VAB technical specifications.
General
Accuracy
0.5%
Package/Case
TO-220-3
Dropout Voltage
350mV
Height
15.09mm
Input Bias Current
80uA
Length
10.41mm
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Mount
Through Hole
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Current
500mA
Output Type
Fixed
Output Voltage
5V
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
130uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
4.7mm
Compliance
RoHS
Compliant
Datasheet
Microchip TC1262-5.0VAB Datasheet
Download the complete datasheet for Microchip TC1262-5.0VAB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

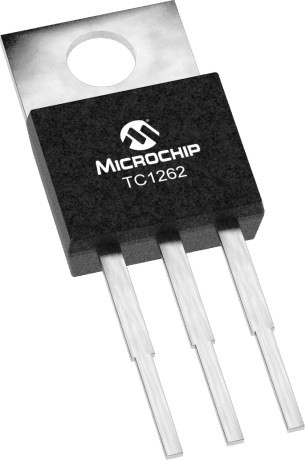

Product Images
