1.8V fixed positive LDO regulator with 800mA output current and 1.2V dropout voltage. Features 0.5% accuracy, 6V maximum input voltage, and a TO-220-3 through-hole package. Operates from -40°C to 125°C with 130uA quiescent current. RoHS compliant.
PackageTO-220-3
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Microchip TC1264-1.8VAB technical specifications.
General
Accuracy
0.5%
Package/Case
TO-220-3
Dropout Voltage
1.2V
Height
0.355inch
Lead Free
Lead Free
Length
10.67mm
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
800mA
Mount
Through Hole
Nominal Output Voltage
1.8V
Number of Outputs
1
Number of Regulators
1
Output Current
800mA
Output Type
Fixed
Output Voltage
1.8V
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
130uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
0.19inch
Compliance
RoHS
Compliant
Datasheet
Microchip TC1264-1.8VAB Datasheet
Download the complete datasheet for Microchip TC1264-1.8VAB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

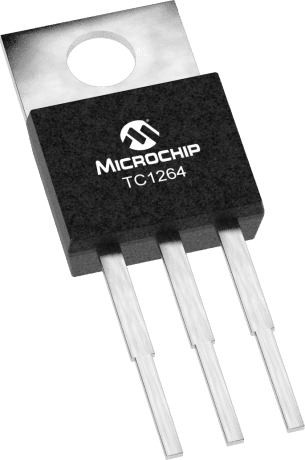

Product Images
