2.5V fixed positive LDO voltage regulator, offering 800mA output current with a 450mV dropout voltage. Features 0.5% accuracy and a 64dB PSRR. Operates from 2.7V to 6V input, with a temperature range of -40°C to 125°C. Packaged in a TO-220-3 through-hole mount, this RoHS compliant component is supplied in rail/tube packaging.
PackageTO-220-3
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Microchip TC1264-2.5VAB technical specifications.
General
Accuracy
0.5%
Package/Case
TO-220-3
Dropout Voltage
450mV
Height
0.19inch
Lead Free
Lead Free
Length
16.51mm
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
800mA
Min Output Voltage
2.5V
Mount
Through Hole
Nominal Output Voltage
2.5V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
800mA
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
64dB
Quiescent Current
130uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
0.42inch
Compliance
RoHS
Compliant
Datasheet
Microchip TC1264-2.5VAB Datasheet
Download the complete datasheet for Microchip TC1264-2.5VAB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

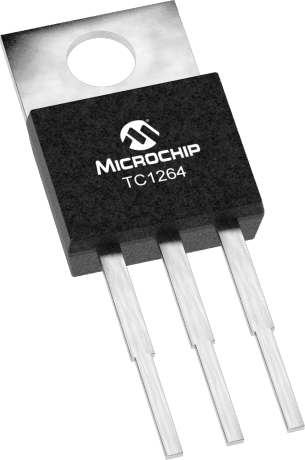

Product Images
