Positive fixed 2.5V LDO regulator with 800mA output current and 1.2V dropout voltage. Features 0.5% accuracy and a maximum input voltage of 6V. Operates from -40°C to 125°C in a 3-pin SOT-223 surface mount package. RoHS compliant and lead-free.
PackageSOT-223-3
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip TC1264-2.5VDBTR technical specifications.
General
Accuracy
0.5%
Package/Case
SOT-223-3
Dropout Voltage
1.2V
Height
1.7mm
Lead Free
Lead Free
Length
6.7mm
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
800mA
Min Output Voltage
2.5V
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Current
800mA
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
4000
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
80uA
RoHS Compliant
Yes
Width
3.7mm
Compliance
RoHS
Compliant
Datasheet
Microchip TC1264-2.5VDBTR Datasheet
Download the complete datasheet for Microchip TC1264-2.5VDBTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

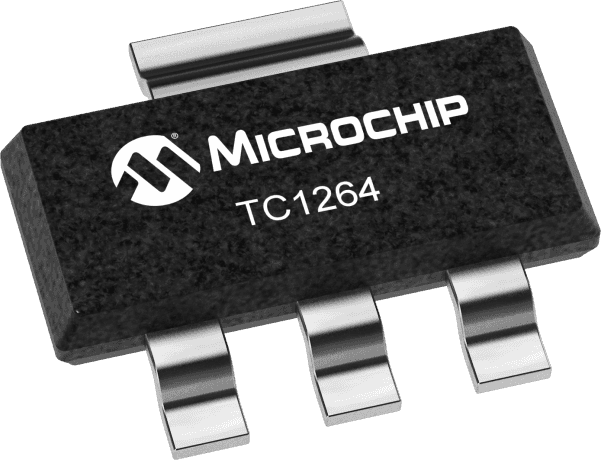

Product Images
