Microchip
TC1264-2.5VEBTR
2.5 V FIXED POSITIVE LDO REGULATOR, 1.3 V DROPOUT, PSSO3, ROHS COMPLIANT, PLASTIC, TO-263, DDPAK-3
PackageTO-263-4
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip TC1264-2.5VEBTR technical specifications.
General
Accuracy
0.5%
Package/Case
TO-263-4
Dropout Voltage
1.2V
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Current
800mA
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
750
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
80uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip TC1264-2.5VEBTR Datasheet
Download the complete datasheet for Microchip TC1264-2.5VEBTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

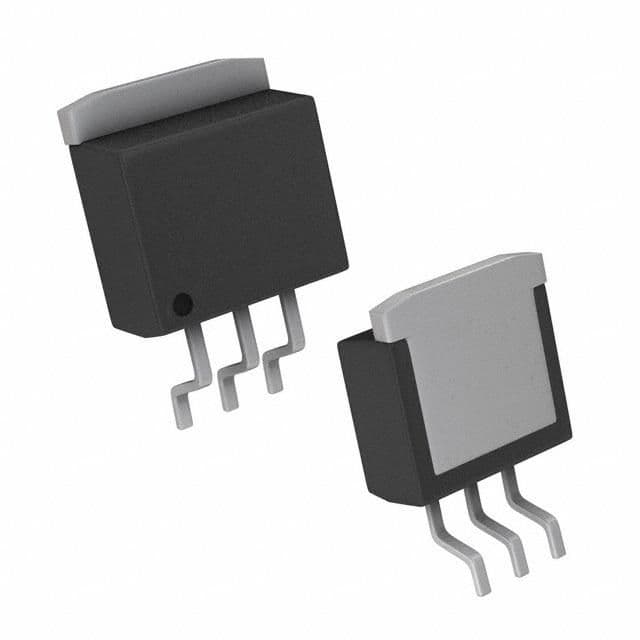

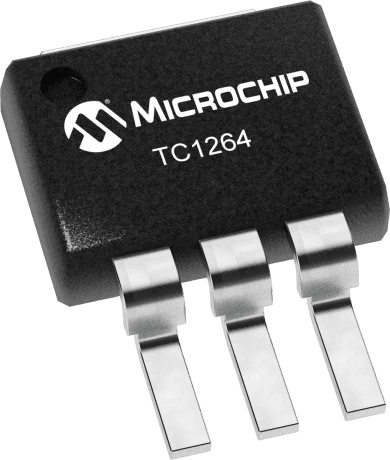

Product Images
