3.3V fixed positive LDO regulator, offering 800mA output current with a 1.2V dropout voltage. Features 0.5% accuracy, a maximum input voltage of 6V, and operates from 2.7V to 6V. Housed in a TO-220-3 package for through-hole mounting, this RoHS compliant component boasts a wide operating temperature range of -40°C to 125°C.
PackageTO-220-3
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Microchip TC1264-3.3VAB technical specifications.
General
Accuracy
0.5%
Package/Case
TO-220-3
Dropout Voltage
1.2V
Height
0.19inch
Lead Free
Lead Free
Length
16.51mm
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
800mA
Mount
Through Hole
Number of Outputs
1
Number of Regulators
1
Output Current
800mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
80uA
Radiation Hardening
No
RoHS Compliant
Yes
Width
0.42inch
Compliance
RoHS
Compliant
Datasheet
Microchip TC1264-3.3VAB Datasheet
Download the complete datasheet for Microchip TC1264-3.3VAB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

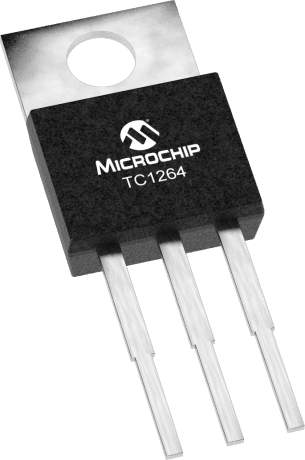

Product Images
