Microchip
TC1264-3.3VDB
3.3 V FIXED POSITIVE LDO REGULATOR, 1.3 V DROPOUT, PDSO3, PLASTIC, SOT-223, 4 PIN
PackageSOT-223
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip TC1264-3.3VDB technical specifications.
General
Accuracy
0.5%
Package/Case
SOT-223
Dropout Voltage
1.2V
Height
1.8mm
Length
7.3mm
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
800mA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Current
800mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
78
Packaging
Rail/Tube
Polarity
Positive
RoHS Compliant
Yes
Width
7.3mm
Compliance
RoHS
Compliant
Datasheet
Microchip TC1264-3.3VDB Datasheet
Download the complete datasheet for Microchip TC1264-3.3VDB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

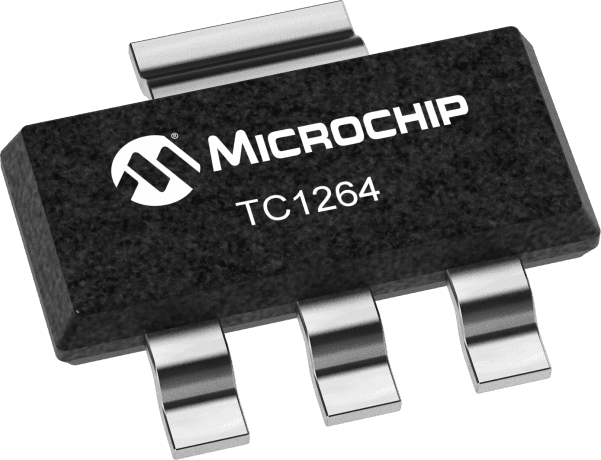

Product Images
