The TC1271ASVRCTR is a simple reset/power-on reset IC with a maximum operating temperature of 125°C and a minimum operating temperature of -40°C. It has a maximum supply voltage of 5.5V and a minimum supply voltage of 1V. The device is mounted using surface mount technology and has a quiescent current of 7uA. It is RoHS compliant and available in a package quantity of 3000 units per reel.
PackageSOT-143
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip TC1271ASVRCTR technical specifications.
General
| Package/Case | SOT-143 |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Reset Threshold Voltage | 2.98V |
| Min Reset Threshold Voltage | 2.88V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 10uA |
| Output | TOTEM-POLE |
| Overvoltage Threshold | 2.98V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 7uA |
| Reset | Active High |
| Reset Timeout | 140ms |
| RoHS Compliant | Yes |
| Threshold Voltage | 2.93V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 2.88V |
| Watchdog Timer | No |
Compliance
| RoHS | Compliant |
Datasheet
Microchip TC1271ASVRCTR Datasheet
Download the complete datasheet for Microchip TC1271ASVRCTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

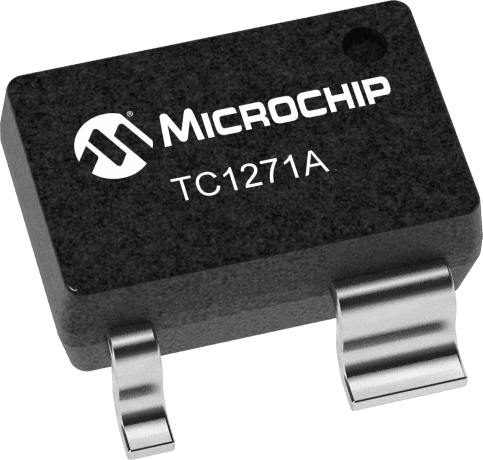

Product Images
