PackageDFN EP
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip TC1302B-DTVMFTR technical specifications.
General
Accuracy
0.5%
Package/Case
DFN EP
Input Bias Current
58uA
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Min Output Voltage
1.65V
Mount
Surface Mount
Number of Outputs
2
Number of Regulators
2
Output Configuration
Positive
Output Current
150mA
Output Type
Fixed
Output Voltage
1.65V
Package Quantity
3300
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
58dB
Quiescent Current
180uA
Radiation Hardening
No
Compliance
RoHS
Compliant
Datasheet
Microchip TC1302B-DTVMFTR Datasheet
Download the complete datasheet for Microchip TC1302B-DTVMFTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

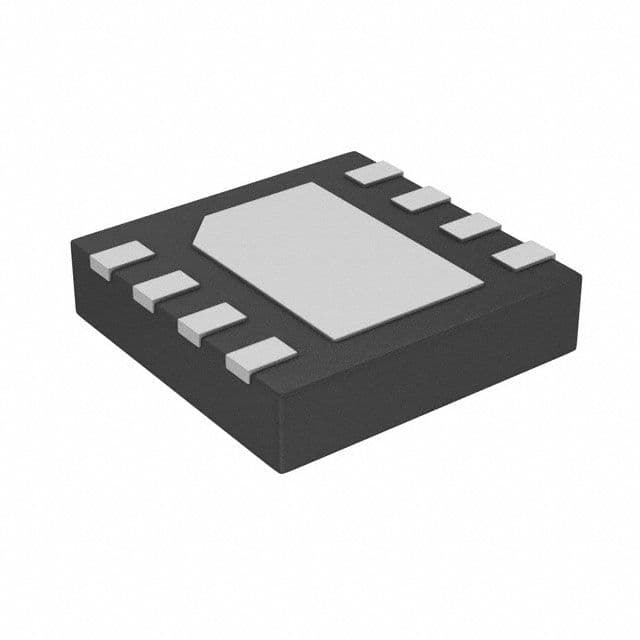

Product Images
