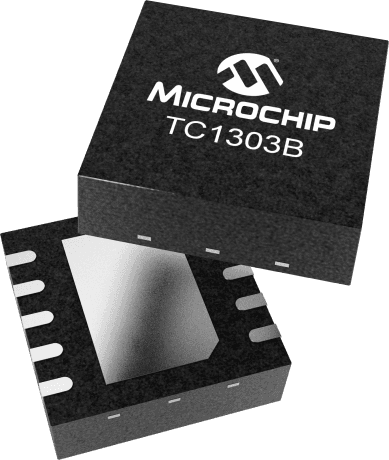

Microchip
TC1303B-SI0EMF
0.5 A SWITCHING REGULATOR, 2400 kHz SWITCHING FREQ-MAX, PDSO10, 3 X 3 MM, 0.9 MM HEIGHT, PLASTIC, DFN-10
PackageDFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip TC1303B-SI0EMF technical specifications.
General
Package/Case
DFN EP
Height
0.88mm
Lead Free
Contains Lead
Length
3mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Outputs
2
Output Current
500mA
Output Voltage
800mV
Package Quantity
120
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Voltage - Output 1
1.5V
Voltage - Output 2
2.5V
Compliance
RoHS
Compliant
Datasheet
Microchip TC1303B-SI0EMF Datasheet
Download the complete datasheet for Microchip TC1303B-SI0EMF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
