Microchip
TC2117-1.8VDBTR
1.8 V FIXED POSITIVE LDO REGULATOR, 1.4 V DROPOUT, PDSO3, PLASTIC, SOT-223, 4 PIN
PackageSOT-223-3
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip TC2117-1.8VDBTR technical specifications.
General
Accuracy
0.5%
Package/Case
SOT-223-3
Dropout Voltage
1.2V
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
800mA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Current
800mA
Output Type
Fixed
Output Voltage
1.8V
Package Quantity
4000
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
80uA
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip TC2117-1.8VDBTR Datasheet
Download the complete datasheet for Microchip TC2117-1.8VDBTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

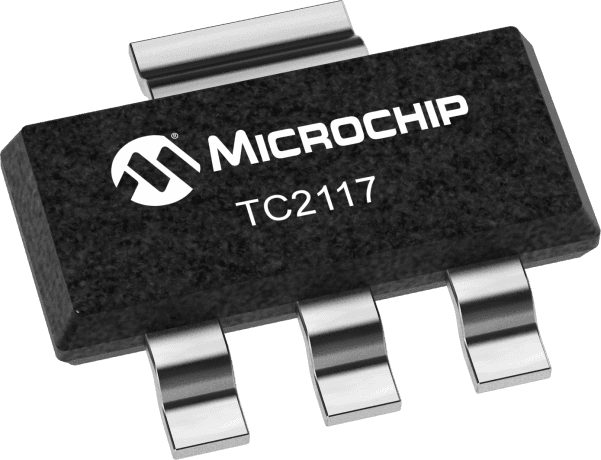

Product Images
