Positive fixed output voltage regulator, 2.5V, with 800mA maximum output current. Features a 1.2V dropout voltage and 0.5% accuracy. Operates from a 2.7V to 6V input voltage range and has a quiescent current of 80µA. Packaged in a TO-263 surface-mount case, this RoHS compliant component is supplied on tape and reel.
PackageTO-263-4
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip TC2117-2.5VEBTR technical specifications.
General
Accuracy
0.5%
Package/Case
TO-263-4
Dropout Voltage
1.2V
Height
0.19inch
Lead Free
Lead Free
Length
9.65mm
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
800mA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Current
800mA
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
750
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
80uA
Radiation Hardening
No
RoHS Compliant
Yes
Width
0.42inch
Compliance
RoHS
Compliant
Datasheet
Microchip TC2117-2.5VEBTR Datasheet
Download the complete datasheet for Microchip TC2117-2.5VEBTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

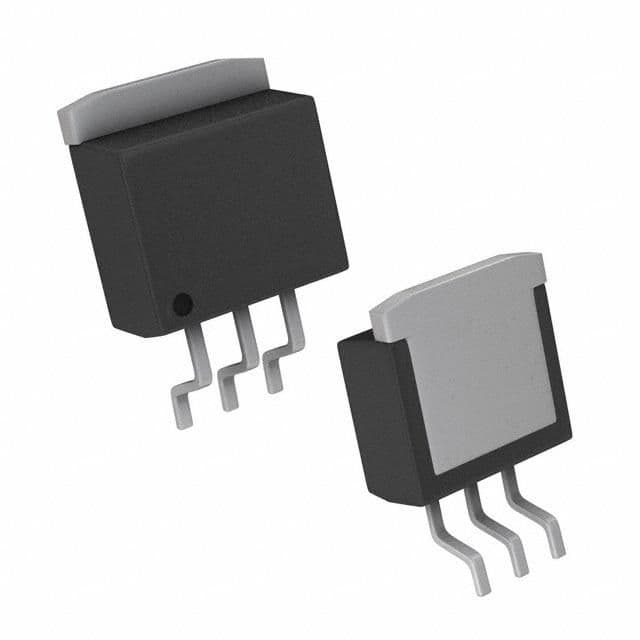

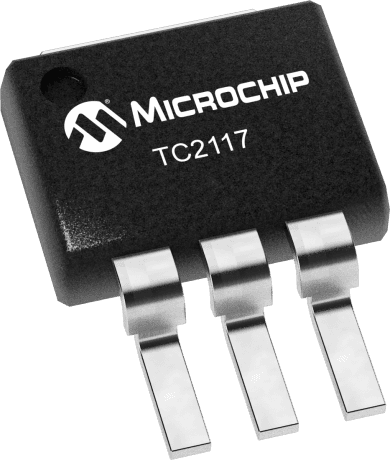

Product Images
