Positive fixed 3.3V LDO regulator with 150mA output current and 0.4% accuracy. Features a low 140mV dropout voltage and 55uA quiescent current. Operates from 2.7V to 6V input, with a maximum power dissipation of 318mW. Packaged in a 5-pin SOT-23-5 surface-mount case, this RoHS compliant component is suitable for applications requiring stable voltage regulation.
PackageSOT-23-5
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip TC2185-3.3VCTTR technical specifications.
General
Accuracy
0.4%
Package/Case
SOT-23-5
Dropout Voltage
140mV
Input Bias Current
55uA
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Min Output Voltage
3.3V
Max Power Dissipation
318mW
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Current
150mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
55uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip TC2185-3.3VCTTR Datasheet
Download the complete datasheet for Microchip TC2185-3.3VCTTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

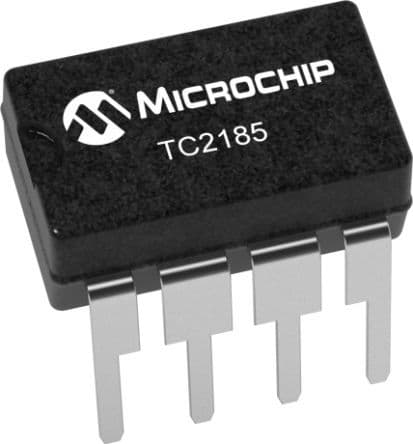

Product Images
