PackageCDIP
Current3mA
MountingThrough Hole
Power800mW
Quick Jump:
Technical Specifications
Microchip TC4420IJA technical specifications.
General
Package/Case
CDIP
Fall Time
35ns
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Output Current
6A
Max Power Dissipation
800mW
Max Supply Current
1.5mA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Drivers
1
Number of Outputs
1
Package Quantity
56
Packaging
Rail/Tube
Power Dissipation
800mW
Propagation Delay
75ns
RoHS Compliant
Yes
Supply Current
3mA
Compliance
RoHS
Compliant
Datasheet
Microchip TC4420IJA Datasheet
Download the complete datasheet for Microchip TC4420IJA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

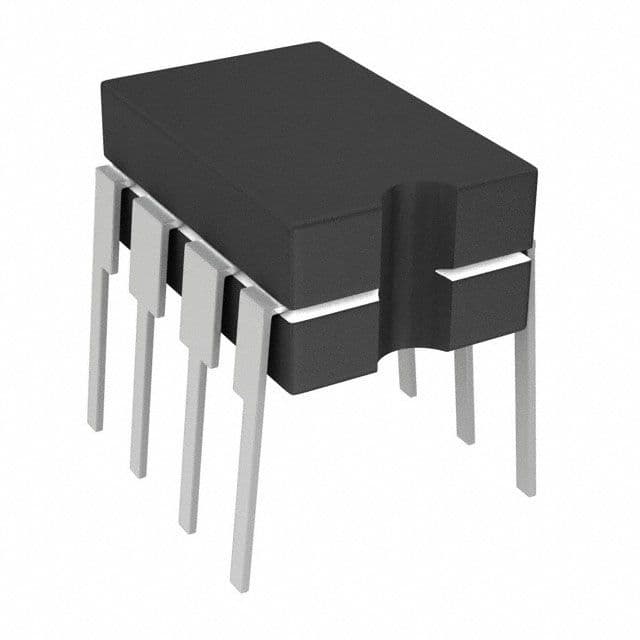

Product Images
