PackageTO-220-5
Current3mA
MountingThrough Hole
Power1.6W
Quick Jump:
Technical Specifications
Microchip TC4420VAT technical specifications.
General
Package/Case
TO-220-5
Channel Type
Single
Fall Time
35ns
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
6A
Max Power Dissipation
1.6W
Max Supply Current
1.5mA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Drivers
1
Number of Outputs
1
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
1.6W
Propagation Delay
75ns
RoHS Compliant
Yes
Supply Current
3mA
Compliance
RoHS
Compliant
Datasheet
Microchip TC4420VAT Datasheet
Download the complete datasheet for Microchip TC4420VAT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

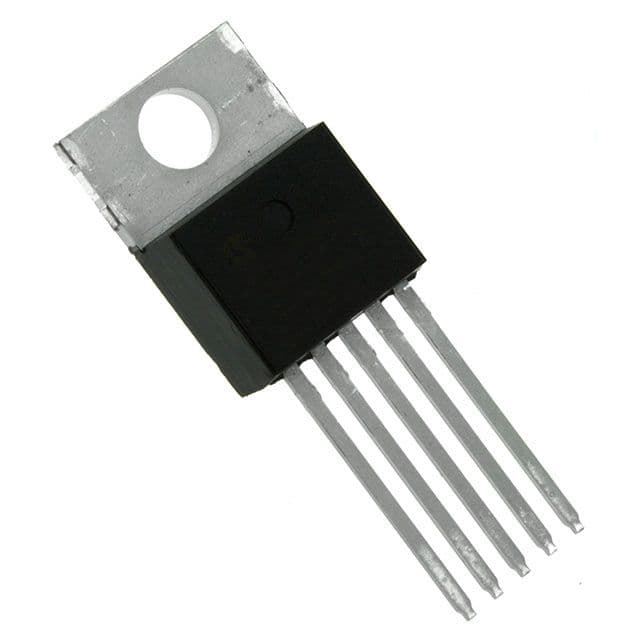

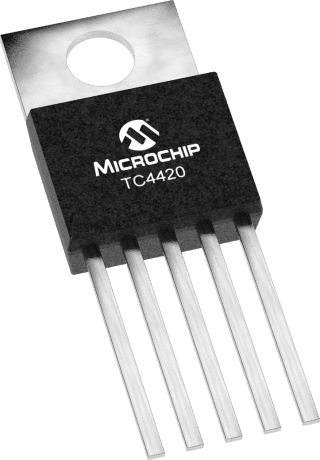

Product Images
