PackageSOIC
Current1.5mA
MountingSurface Mount
Power750mW
Quick Jump:
Technical Specifications
Microchip TC4421ESM technical specifications.
General
Package/Case
SOIC
Fall Time
75ns
Height
0.078inch
Input Bias Current
10uA
Lead Free
Lead Free
Length
0.207inch
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
9A
Max Power Dissipation
750mW
Max Supply Current
1.5mA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
1
Number of Outputs
1
Package Quantity
90
Packaging
Rail/Tube
Power Dissipation
750mW
Propagation Delay
60ns
RoHS Compliant
Yes
Supply Current
1.5mA
Width
0.207inch
Compliance
RoHS
Compliant
Datasheet
Microchip TC4421ESM Datasheet
Download the complete datasheet for Microchip TC4421ESM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

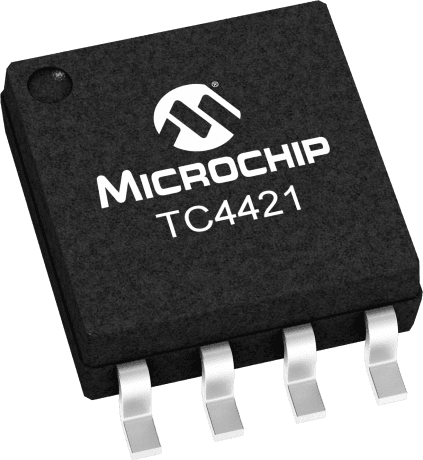

Product Images
