Single-output, low-side, non-inverting gate driver IC featuring a 9A maximum output current. This through-hole component operates with a supply voltage range of 4.5V to 18V, with a typical operating voltage of 15V. Key performance specifications include a 60ns propagation delay and a 75ns fall time. Packaged in an 8-pin PDIP, this RoHS compliant device has a maximum power dissipation of 730mW and is suitable for operation between 0°C and 70°C.
PackagePDIP
Current1.5mA
MountingThrough Hole
Power730mW
Quick Jump:
Technical Specifications
Microchip TC4422CPA technical specifications.
General
Package/Case
PDIP
Fall Time
75ns
Height
4.06mm
Input Bias Current
10uA
Lead Free
Lead Free
Length
10.16mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
9A
Max Power Dissipation
730mW
Max Supply Current
1.5mA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Drivers
1
Number of Outputs
1
Operating Supply Voltage
15V
Package Quantity
60
Packaging
Rail/Tube
Power Dissipation
730mW
Propagation Delay
60ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
1.5mA
Turn-On Delay Time
60ns
Width
6.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip TC4422CPA Datasheet
Download the complete datasheet for Microchip TC4422CPA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

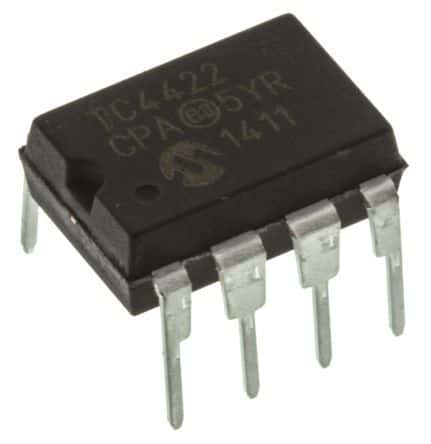

Product Images
