Single-channel MOSFET gate driver with 9A peak output current, designed for surface mounting in a SOIC package. Features a 4.5V to 18V operating voltage range and a maximum power dissipation of 750mW. Offers a 60ns propagation delay and 60ns fall time, with a low input bias current of 10µA. This RoHS compliant component operates from -40°C to 85°C.
PackageSOIC
Current200uA
MountingSurface Mount
Power750mW
Quick Jump:
Technical Specifications

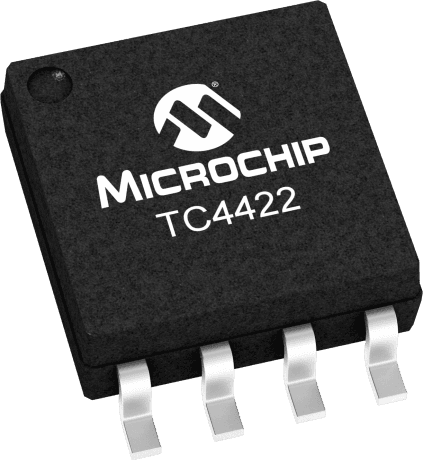

Microchip TC4422ESM technical specifications.
General
Package/Case
SOIC
Channel Type
Single
Fall Time
60ns
Height
0.078inch
Input Bias Current
10uA
Lead Free
Lead Free
Length
0.207inch
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
9A
Max Power Dissipation
750mW
Max Supply Current
1.5mA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
1
Number of Outputs
1
Output Current
2A
Package Quantity
90
Packaging
Rail/Tube
Power Dissipation
750mW
Propagation Delay
60ns
RoHS Compliant
Yes
Supply Current
200uA
Width
0.207inch
Compliance
RoHS
Compliant
Datasheet
Microchip TC4422ESM Datasheet
Download the complete datasheet for Microchip TC4422ESM to view detailed technical specifications.
