High-current, single-channel MOSFET gate driver with 9A peak output current. Features 60ns propagation delay and 75ns fall time, operating from a 4.5V to 18V supply range. This lead-free, RoHS compliant component is housed in a CDIP package, offering a wide operating temperature range from -55°C to 125°C.
PackageCDIP
Current200uA
Power800mW
Quick Jump:
Technical Specifications
Microchip TC4422MJA technical specifications.
General
Package/Case
CDIP
Fall Time
75ns
Height
0.16inch
Input Bias Current
10uA
Lead Free
Lead Free
Length
0.4inch
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Current
9A
Max Supply Current
1.5mA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Number of Drivers
1
Number of Outputs
1
Operating Supply Voltage
15V
Output Current
2A
Package Quantity
56
Packaging
Rail/Tube
Power Dissipation
800mW
Propagation Delay
60ns
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
200uA
Turn-On Delay Time
60ns
Width
0.3inch
Compliance
RoHS
Compliant
Datasheet
Microchip TC4422MJA Datasheet
Download the complete datasheet for Microchip TC4422MJA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

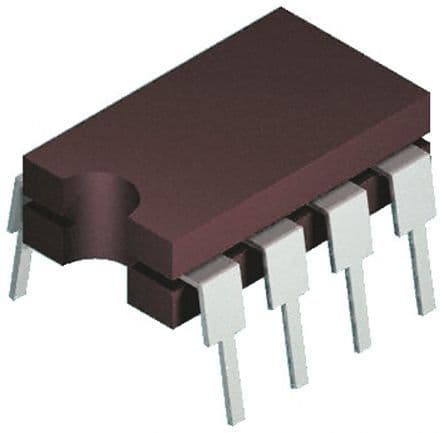

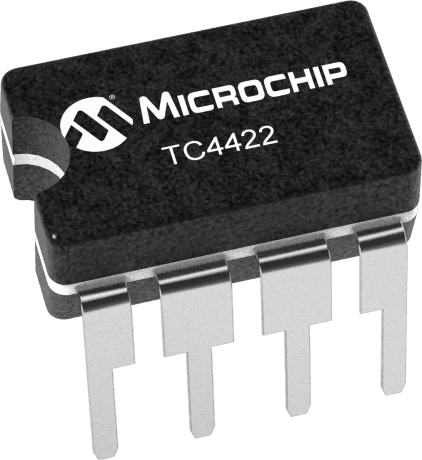

Product Images
