Microchip
TC4426AMJA

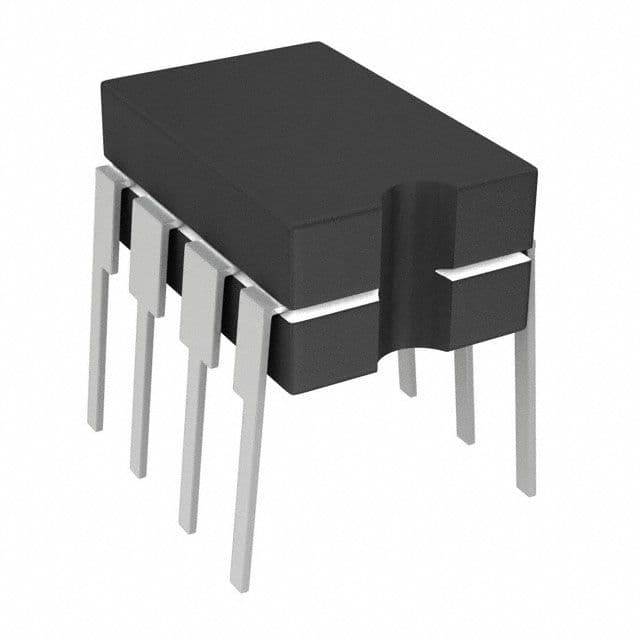

1.5 A 2 CHANNEL, BUF OR INV BASED MOSFET DRIVER, CDIP8, 0.300 INCH, LEAD FREE, MS-030, CERDIP-8
PackageCDIP
Current4.5mA
MountingThrough Hole
Power800mW
Quick Jump:
Technical Specifications
Microchip TC4426AMJA technical specifications.
General
Package/Case
CDIP
Channel Type
Independent
Fall Time
30ns
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Current
1.5A
Max Power Dissipation
800mW
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Drivers
2
Number of Outputs
2
Package Quantity
56
Packaging
Rail/Tube
Power Dissipation
800mW
Propagation Delay
50ns
RoHS Compliant
Yes
Supply Current
4.5mA
Compliance
RoHS
Compliant
