PackageCDIP
Current150uA
MountingThrough Hole
Power800mW
Quick Jump:
Technical Specifications
Microchip TC4429MJA technical specifications.
General
Package/Case
CDIP
Fall Time
35ns
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Current
6A
Max Supply Current
1.5mA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Drivers
1
Number of Outputs
1
Operating Supply Voltage
15V
Output Current
6A
Package Quantity
56
Packaging
Rail/Tube
Power Dissipation
800mW
Propagation Delay
75ns
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
150uA
Turn-Off Delay Time
0.0001ms
Turn-On Delay Time
100ps
Compliance
RoHS
Compliant
Datasheet
Microchip TC4429MJA Datasheet
Download the complete datasheet for Microchip TC4429MJA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

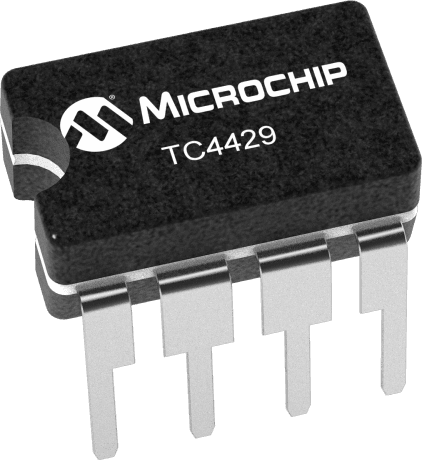

Product Images
