PackageDFN
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip TC4429VMF713 technical specifications.
General
Package/Case
DFN
Fall Time
35ns
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
6A
Max Supply Current
1.5mA
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
1
Number of Outputs
1
Package Quantity
3300
Packaging
Tape and Reel
Propagation Delay
75ns
RoHS Compliant
Yes
Supply Current
3mA
Compliance
RoHS
Compliant
Datasheet
Microchip TC4429VMF713 Datasheet
Download the complete datasheet for Microchip TC4429VMF713 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

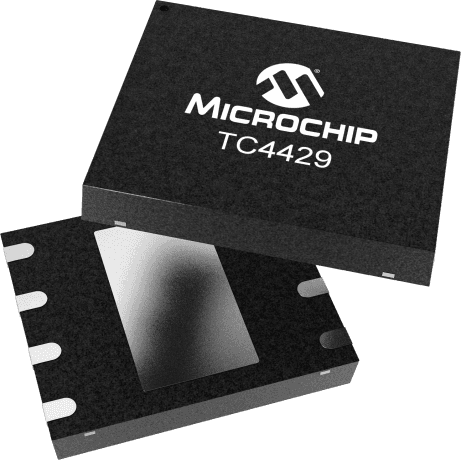

Product Images
