Technical Specifications
Microchip TC4432EJA technical specifications.
General
| Package/Case | CDIP |
| Channel Type | Single |
| Fall Time | 50ns |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5A |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Package Quantity | 56 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Supply Current | 4mA |
Compliance
| RoHS | Compliant |
Datasheet
Microchip TC4432EJA Datasheet
Download the complete datasheet for Microchip TC4432EJA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

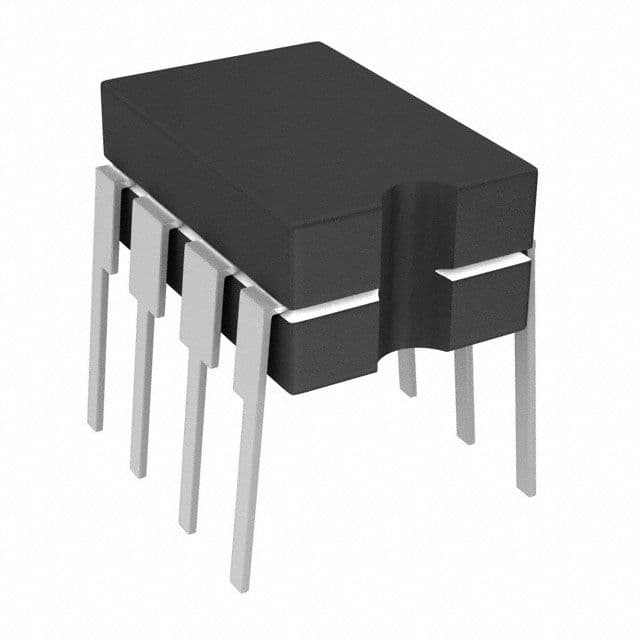

Product Images
