Digital temperature sensor with I2C, SMBus, and 2-Wire serial interface. Features 8-bit resolution and 2% accuracy, operating from 2.7V to 5.5V with a maximum supply current of 350µA. Encased in a TO-220 package with through-hole mounting, this RoHS compliant component offers a wide operating temperature range of -40°C to 125°C.
PackageTO-220
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip TC74A0-5.0VAT technical specifications.
General
Accuracy
2%
Package/Case
TO-220
Height
9.02mm
Interface
I2C, SMBus, 2-Wire, Serial
Lead Free
Lead Free
Length
10.67mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
2.7V
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Through Hole
Number of Bits
8
Operating Supply Current
350uA
Output Current
50mA
Output Type
Digital, I2C
Packaging
Rail/Tube
Reach SVHC Compliant
No
Resolution
8b
RoHS Compliant
Yes
Sensor Type
Temperature
Termination
Through Hole
Width
4.83mm
Compliance
RoHS
Compliant
Datasheet
Microchip TC74A0-5.0VAT Datasheet
Download the complete datasheet for Microchip TC74A0-5.0VAT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

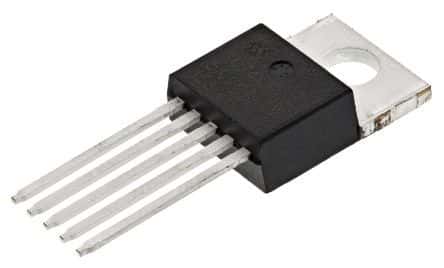

Product Images
