Digital temperature sensor with 2% accuracy, featuring an 8-bit resolution and I2C, SMBus, and 2-Wire serial interface. Operating voltage range is 2.7V to 5.5V DC, with a typical supply current of 350uA. Housed in a compact SOT-23-5 package, this surface mount component offers a wide operating temperature range from -40°C to 125°C.
PackageSOT-23-5
Current200uA
MountingSurface Mount, Through Hole
Quick Jump:
Technical Specifications
Microchip TC74A0-5.0VCTTR technical specifications.
General
Accuracy
2%
Package/Case
SOT-23-5
Height
1.1mm
Interface
I2C, SMBus, 2-Wire, Serial
Lead Free
Lead Free
Lead Pitch
0.95mm
Length
2.95mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
2.7V
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount, Through Hole
Number of Bits
8
Operating Supply Current
350uA
Output Current
50mA
Output Type
Digital, I2C
Output Voltage
5V
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
8b
RoHS Compliant
Yes
Row Spacing
3.1mm
Sensor Type
Temperature
Supply Current
200uA
Termination
SMD/SMT
Width
1.63mm
Compliance
RoHS
Compliant
Datasheet
Microchip TC74A0-5.0VCTTR Datasheet
Download the complete datasheet for Microchip TC74A0-5.0VCTTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

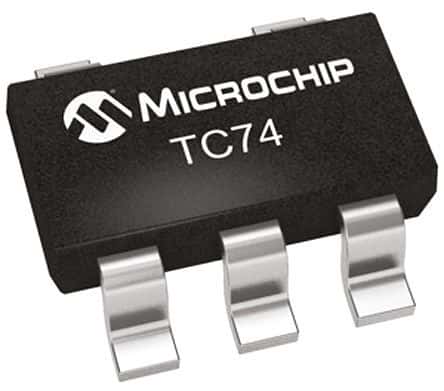

Product Images
