PackageTO-220-5
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip TC74A1-5.0VAT technical specifications.
General
Package/Case
TO-220-5
Height
15.57mm
Interface
I2C, SMBus, 2-Wire, Serial
Lead Free
Lead Free
Length
10.54mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
2.7V
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Through Hole
Number of Bits
8
Operating Supply Current
350uA
Output Current
50mA
Output Type
Digital, I2C
Package Quantity
50
Packaging
Rail/Tube
Resolution
8b
RoHS Compliant
Yes
Width
4.7mm
Compliance
RoHS
Compliant
Datasheet
Microchip TC74A1-5.0VAT Datasheet
Download the complete datasheet for Microchip TC74A1-5.0VAT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

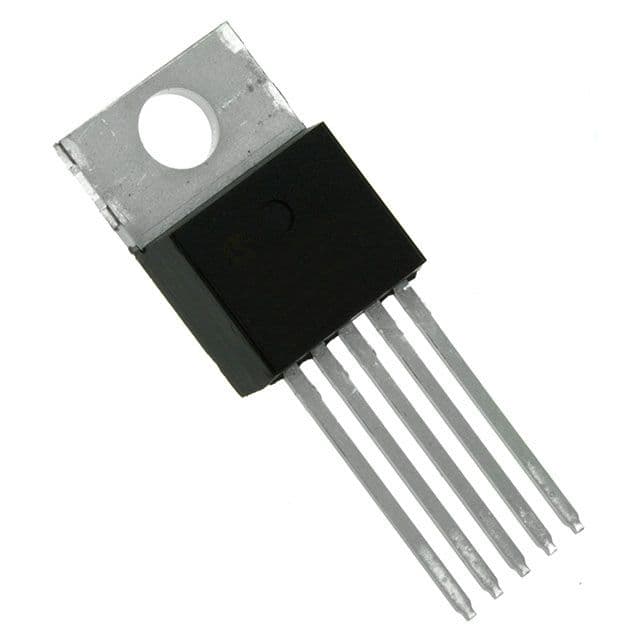

Product Images
