Digital relative humidity sensor with 8-bit resolution, featuring I2C, SMBus, and 2-Wire serial interfaces. This surface mount component operates from a 2.7V to 5.5V supply, with a maximum operating temperature of 125°C and a minimum of -40°C. Packaged in a 5-pin SOT-23-5 (3mm L x 1.8mm W x 1.3mm H), it offers a typical operating current of 350uA and is RoHS compliant.
PackageSOT-23-5
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip TC74A5-3.3VCTTR technical specifications.
General
Package/Case
SOT-23-5
Height
1.3mm
Interface
I2C, SMBus, 2-Wire, Serial
Lead Free
Lead Free
Length
3mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
2.7V
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
8
Operating Supply Current
350uA
Output Current
50mA
Output Type
Digital, I2C
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
8b
RoHS Compliant
Yes
Width
1.8mm
Compliance
RoHS
Compliant
Datasheet
Microchip TC74A5-3.3VCTTR Datasheet
Download the complete datasheet for Microchip TC74A5-3.3VCTTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

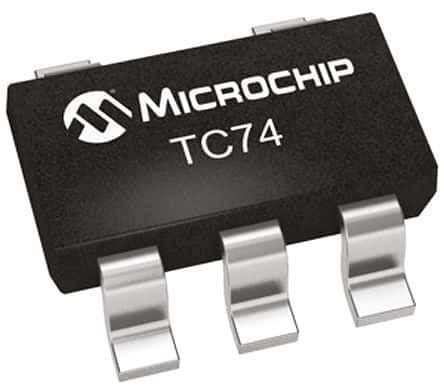

Product Images
