8-bit temperature sensor IC with I2C/SMBus interface, offering 2% accuracy across a -40°C to 125°C operating temperature range. Features a 2.7V to 5.5V supply voltage and 50mA output current. Packaged in a TO-220 through-hole mount, this RoHS compliant component operates at 350uA.
PackageTO-220
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip TC74A5-5.0VAT technical specifications.
General
Accuracy
2%
Package/Case
TO-220
Height
0.613inch
Interface
I2C, SMBus, 2-Wire, Serial
Lead Free
Lead Free
Length
0.414inch
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
2.7V
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Through Hole
Number of Bits
8
Operating Supply Current
350uA
Output Current
50mA
Output Type
Digital, I2C
Packaging
Rail/Tube
Reach SVHC Compliant
No
Resolution
8b
RoHS Compliant
Yes
Sensor Type
Temperature
Termination
Through Hole
Width
0.185inch
Compliance
RoHS
Compliant
Datasheet
Microchip TC74A5-5.0VAT Datasheet
Download the complete datasheet for Microchip TC74A5-5.0VAT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

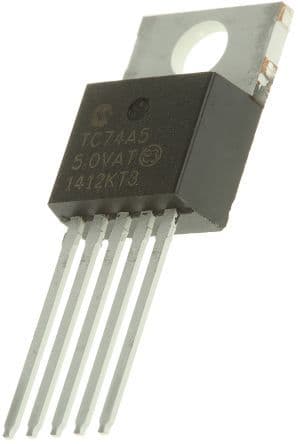

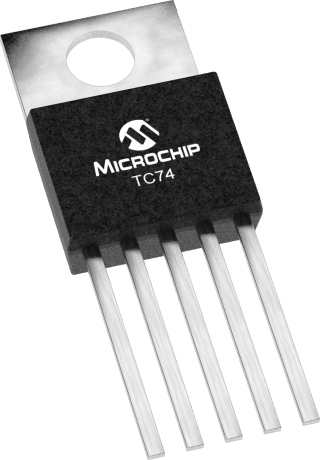

Product Images
