Digital serial relative humidity sensor with 12-bit resolution and 3% accuracy. Features a 3-wire SPI interface, operating from a 2.7V to 5.5V supply. Housed in a compact 5-pin SOT-23 surface-mount package, measuring 3.1mm x 1.75mm x 1.3mm. Operates across a wide temperature range of -55°C to 125°C. Supplied on tape and reel for automated assembly.
PackageSOT-23
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip TC77-3.3MCTTR technical specifications.
General
Accuracy
3%
Package/Case
SOT-23
Height
1.3mm
Interface
SPI, 3-WIRE, Serial
Lead Free
Lead Free
Length
3.1mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
2.7V
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
13
Operating Supply Current
400uA
Output Current
1uA
Output Type
Digital, SPI
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Width
1.75mm
Compliance
RoHS
Compliant
Datasheet
Microchip TC77-3.3MCTTR Datasheet
Download the complete datasheet for Microchip TC77-3.3MCTTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

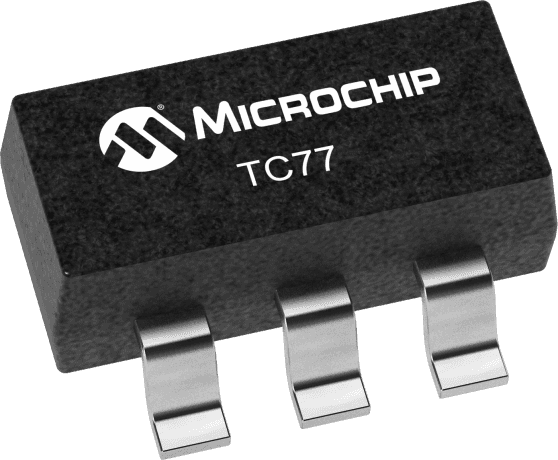

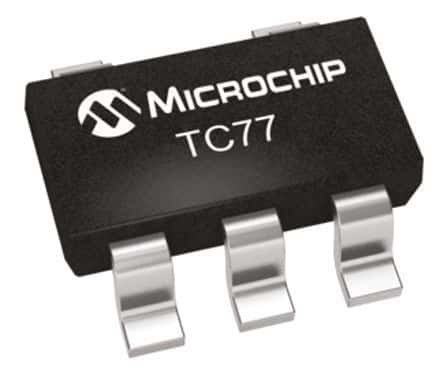

Product Images
