Digital serial temperature sensor with 12-bit resolution and 3% accuracy. Features SPI and 3-wire serial interface, operating from 2.7V to 5.5V supply. Housed in a lead-free, RoHS-compliant SOIC package for surface mounting. Extended operating temperature range from -55°C to 125°C.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip TC77-3.3MOA technical specifications.
General
Accuracy
3%
Package/Case
SOIC
Height
1.42mm
Interface
SPI, 3-WIRE, Serial
Lead Free
Lead Free
Length
4.9mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Current
400uA
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
2.7V
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
13
Operating Supply Current
400uA
Output Current
1uA
Output Type
Digital, SPI
Packaging
Rail/Tube
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sensor Type
Temperature
Termination
SMD/SMT
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Microchip TC77-3.3MOA Datasheet
Download the complete datasheet for Microchip TC77-3.3MOA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

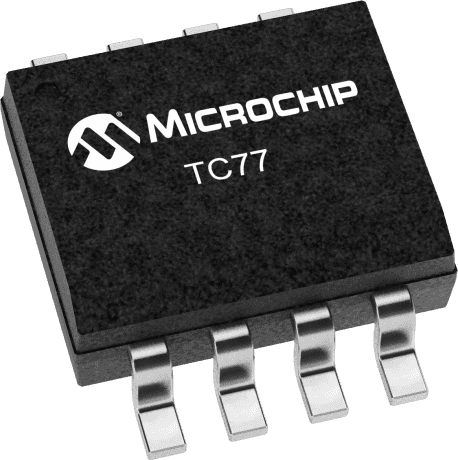

Product Images
