Digital relative humidity sensor with 13-bit resolution, featuring a 3-wire SPI serial interface. Operating voltage range is 2.7V to 5.5V DC, with a typical supply current of 250uA. This surface mount component is housed in a compact SOT-23 package (3.1mm L x 1.75mm W x 1.3mm H) and operates from -55°C to 125°C. RoHS compliant and supplied on tape and reel.
PackageSOT-23
Current250uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip TC77-5.0MCTTR technical specifications.
General
Package/Case
SOT-23
Height
1.3mm
Interface
SPI, 3-WIRE, Serial
Lead Free
Lead Free
Length
3.1mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Current
2mA
Max Supply Current
400uA
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
2.7V
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
13
Operating Supply Current
250uA
Output Current
1uA
Output Type
Digital, SPI
Output Voltage
2.4V
Packaging
Tape and Reel
Reach SVHC Compliant
No
Resolution
13b
RoHS Compliant
Yes
Supply Current
250uA
Termination
SMD/SMT
Width
1.75mm
Compliance
RoHS
Compliant
Datasheet
Microchip TC77-5.0MCTTR Datasheet
Download the complete datasheet for Microchip TC77-5.0MCTTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

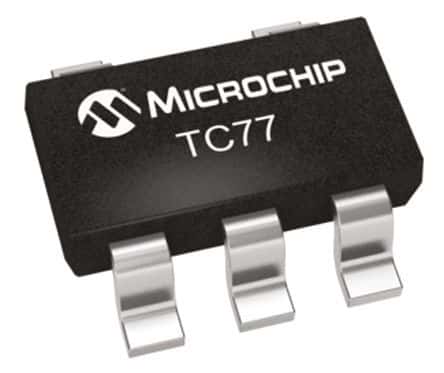

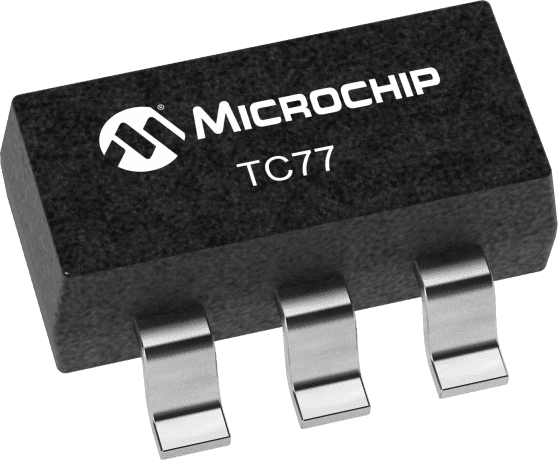

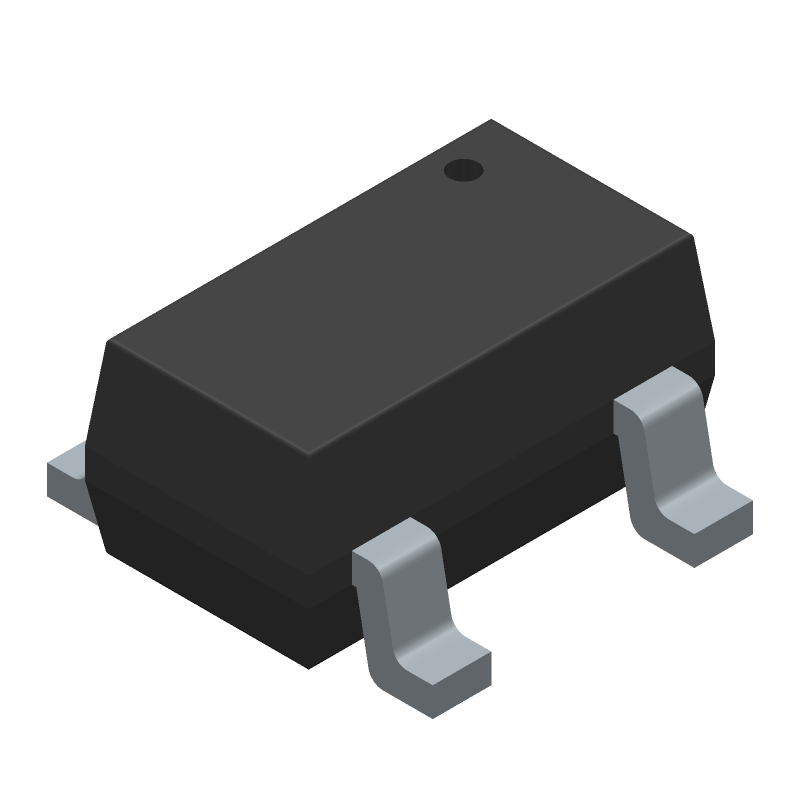

Product Images
