Digital serial temperature sensor with 12-bit resolution and 3% accuracy. Features SPI and 3-wire serial interface, operating from a 2.7V to 5.5V supply. Surface mount SOIC package with a 1.42mm height, 4.9mm length, and 3.91mm width. Suitable for operation between -55°C and 125°C.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip TC77-5.0MOA technical specifications.
General
Accuracy
3%
Package/Case
SOIC
Height
1.42mm
Interface
SPI, 3-WIRE, Serial
Lead Free
Lead Free
Length
4.9mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
2.7V
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
13
Operating Supply Current
400uA
Output Current
1uA
Output Type
Digital, SPI
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sensor Type
Temperature
Termination
SMD/SMT
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Microchip TC77-5.0MOA Datasheet
Download the complete datasheet for Microchip TC77-5.0MOA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

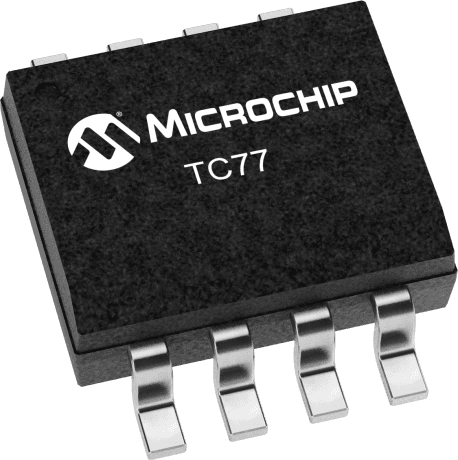

Product Images
